What is the Best Method For Building A Small Cabin Foundation?

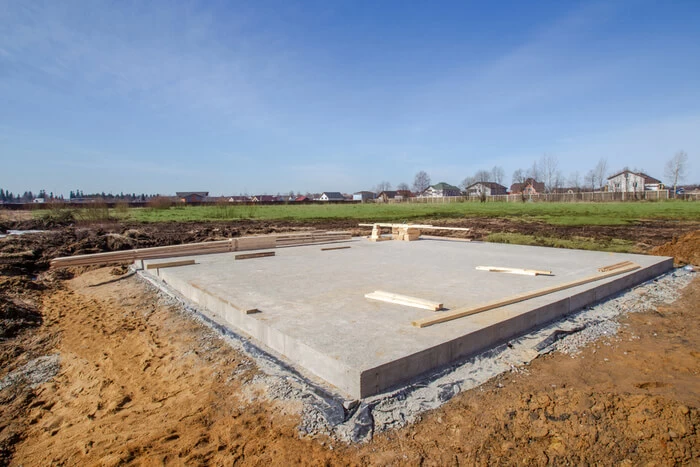

HINT: It’s NOT like this!
On a scale of 1 – 10: How critical do you think the cabin foundation is?
Let’s just come right out and be clear that the foundation is easily THE MOST important phase of your off grid build.
Today we’ll cover exactly how we designed and built our foundation as well as the reasons we went with this particular design.
If you’re new to The Off Grid Cabin then welcome aboard the adventure.
Be sure to follow along for all our tips and tricks to building the BEST off grid home.
We’re sharing every step of this one of a kind build with you as well as a host of other off grid goodies!
Want To See The Complete Step-By-Step Build Process & Build Cost To Our Cabin?
SHOW ME THE COMLETE PROCESS!Enjoy the adventure and hey… if you found it fun, informative, or entertaining be sure to help us out by sharing this post with your social media peeps or this Pinterest Pin!
Different Types Of Cabin Foundations
There are several different foundation designs that are suitable for off grid building.
However, a lot depends on the ground conditions, soil type, moisture content and depth of foundation.
They range from simple footing and pier designs like ours all the way to fully poured concrete basements or crawl spaces.
Remember to consider the following when choosing the type of foundation you’ll be constructing…
- Ground type (gravel, soil, rocky, slab, tree roots)
- Ease of clearing the land
- Overall footprint
- Settling
- Slope
- Time
- Cost
Here is a look at several different foundation designs from the simple to complex.
1. Cement Pad with Cinder Block Footing and Beam
2. Poured Concrete Footing with Pier and Beam
3. Cement Sonotube with Pier and Beam
4. Poured Concrete Raft
5. Poured Strip Above Ground
6. Poured Strip Below Ground
7. Poured Basement and/or Crawl Space
There are pros and cons to each of the foundation designs.
However, it came down to four factors that determined our choice.
- Overall cost of the build ($20K)
- Limited time to build the cabin (we had 15 days total)
- Ease of build for just two people
- Limited access to the remote build site (we had an excavator for one day)
Why We Choose This Specific Foundation Design
Our foundation design is both incredibly economical and effective at providing a solid building platform. It’s also specifically adapted to our particular soil type based on geographic location.
TIP: It isn’t always easy to build in an off grid location or with a limited crew so always factor in your location and accessibility when choosing your foundation type.
The design considerations for our cabin foundation were…
- Inexpensive design
- Can be built in a singe day with just two people
- Requires no heavy equipment
- No digging post holes
- No pouring cement
- Only requires a level and some basic hand-tools
- Provides the ability to level the cabin easily during the build and in the future
- Affords an excellent thermal break for colder climates like ours
Our off grid cabin was built with with just myself and my father within a two week period.
Inside those two weeks we managed to complete to following…
- clearing the land
- carrying all the building materials to the build site by hand
- building the foundation
- framing the cabin and the roof
- installing all the doors and windows
- putting up all the exterior/roof sheathing
The entire solar install was done in only 2 days. We have a complete beginners guide to off grid solar systems.
Heavy machinery is expensive to bring in and the soil type may not always conducive to you building a fully dug out basement.
A poured foundation, or even a cement pad, can cost thousands and take weeks to build.
Again, a cement truck may not even be able to access your build site. They certainly couldn’t on ours.
Our foundation was simple to design and quick to build.
TIP: Our floor design might seem unique but it is a proven building technique for cold environment s like ours.
We will sandwich 1″ think rigid formula extruded polystyrene insulation between 3/4″ OSB.
This provides an excellent thermal break from the cold harsh winters of Nova Scotia and creates a strong and rigid building platform.
When built properly, your cabins foundation should easily last the life of the cabin and most importantly provide a plumb, level and solid building foundation.
The Foundation So Far
Previously we began to lay out the footings to prepare for what lay ahead today.
Be sure to check out our #1 Secret For The Perfect Foundation post which covers how we cleared the land and prepped the build site for the foundation.
Today we’ll finish installing the footings, build the main support beams, and begin framing e the floor joist.
This will give us a good idea of the cabin dimensions and allow us to imagine the walls, placement of the utilities, and consider any yhanges that we may need to make.
Planning Out The Footing Design
We leveled out the 12 locations, on undisturbed soil, where we’ll be placing the above ground footings.
We did this using 2 bags of Quikrete All-Purpose-Sand for each of the locations where we’ll be placing the 8 24″ X 24″ patio slab paver pads and 3 precast 4-way concrete post footings for the 3 deck posts.
Leveling the ground with All-Purpose-Sand (AKA Crusher Dust)
Getting the ground perfectly level is critical in ensuring the remainder of the structure is level, won’t shift, and allows for every beam, board and joist to line up perfectly.
Below my wife is leveling out the ground.
It’s great when the whole family comes out to lend a hand.
Laying out some lumber scabs to ensure the pads are all the same height.
Below we initially used 4 cinder blocks on each pad (2 on top of 2) but we found that was a little too high to our liking.
TIP: You can fill the cinder block with expanding foam to help keep water/snow from filling them up and freezing in the winter.
Here’s a panoramic view of our build site.
These are the Shaw Brick 24″ x 24″ patio slab pavers we used.
The Main Support Beams
We used 16ft long 2×8’s to make up the three main beams that will support the floor joist.
To fashion the 20′ beams we over staggered and overlapped the 2×8’s making sure to use construction adhesive and nails the full length of the beam.
TIP: We used DAP Subfloor Construction Adhesive whenever we needed to build our beams or put down subfloor. One can of this expanding foam is equal to 8 tubes of regular construction adhesive!
These are the 9 footings that will support the three main support beams.
TIP: Never allow lumber that is not pressure treated (pt) to come into contact with concrete or cement blocks/pads. The moisture from the concrete can be drawn up into the wood, and after a period of time the wood will rot. You can maintain separation using pt spacers like we did or use an appropriate gasket made from plastic or foam.
Each of the three main support beams are free floating on their respective cement block without anchoring them down.
This allows for the footing to shift (with the change in seasonal temps) “if” that happens at all.
If the beam was anchored to the footing and one footing was to shift, it could cause a shearing force through the cabin and possibly crack a window, put the cabin out of plumb or split the finished drywall.
By allowing the beam to ride on-top of the cement footing the entire building can slightly shift on the foundation which helps prevent any unwanted forces on the cabin.
Now to be 100% clear when I say “shift” or “slide” I’m talking millimeters here.
Please do not misread that and think your home will be sliding around like skates on ice!
A Superior Tool for Speed and Efficiency
Without a doubt THE BEST single purchase we had before tackling this build was this Dewalt Cordless Framing Nailer.
You’ll hear me go on and on about this one tool throughout the build but I honestly cannot give it enough praise.
You may wonder why we would spend the money on something like this when we could have just swung a good old hammer around?
It was a massive time saver!
This one tool easily shaving days off the overall build, allowed us to nail in places where we just could not swing a hammer and best of all it’s cordless (no air hose).
I highly recommend getting one for your build and you can always sell it afterwards if you’ll not need it again.
That was my initial plan but I’ve found I’m always building something at the cabin and this has made those projects so much easier and faster.
The Three Front Deck Footings
We used 3 Shaw Brick 6″ x 6″ Deck Blocks from Home Depot to support the 3 – 6″ x 6″ PT Posts for the front deck.
The Main Floor Joist
We used 2×8’s placed at 16″ on center for the floor joist and plan on topping the floor joists with 3/4″ OSB.
The completed floor joist.
NOTE: We will be laying down 3/4″ OSB subfloor and then a layer of 1″ thick rigid pink foam (FOAMULAR C-200 Extruded Polystyrene Rigid Insulation – 24-inch x 96-inch x 1/2-inch butt edge) from Home Depot to act as a thermal break between the inside and outside of the cabin floor.
The pink foam will have another layer of 3/4″ OSB subfloor on top and then a 6mm poly (Everbilt 10 ft. x 100 ft. CGSB Approved Wall & Ceiling Vapour Barrier)
Lastly we’ll be putting in a water resistant laminate flooring that has a pre-attached foam backer for additional insulation and noise reducing properties.
The pressure treated beams gives us a sneak peek at the rough size of the front deck.
The front deck dimensions are 20′ x 8′
We’ll be using three 6″ x 6″ posts to support the front edge of the covered deck’s steel roof.
Completing The Foundation
Today we finished up the footings, the three main support beams, and began to frame the floor joist.
We now have a good idea of the interior floor space the main living areas, kitchen, bathroom and master bedroom dimensions.
In our opinion, this is by far the best method for building a small cabin foundation with our soil type, climate and proximity to the lake.
Every off grid build has unique foundation requirements.
Remember to consider the following when choosing the type of foundation you’ll be constructing…
- Ground type (gravel, soil, rocky, slab, tree roots)
- Ease of clearing the land
- Overall footprint
- Settling
- Slope
- Time
- Cost
Next time we’ll finish up the floor joist, put in those three 6″ x 6″ pressure treated front deck posts, and make sure the entire foundation is level, plumb and square before we put down the sub-floor.
If you haven’t yet SUBSCRIBE and follow the entire journey!
Ready To Check Out The Next Step Of The Build?
Your Turn!
Are you ready to tackle your own off grid foundation now that we’ve shared ours?
Let us know in the comments below if you have any questions.
And for our Pinterest follower out there here’s a pinnable pin of our foundation!
How To Score The Top 10 Off-Grid Living Essentials for Cheap on Black Friday and Cyber Monday
How To Score The Top 10 Off-Grid Living Essentials for Cheap on Black Friday and Cyber Monday Hurry Now... These Are The Top 10 Off-Grid Living Essentials on Black Friday and Cyber Monday [...]
Top 5 Off Grid Books That Will Inspire Your Off Grid Living Dream
Top 5 Off Grid Books That Will Inspire Your Off Grid Dream The 5 Must-Reads for Anyone Who Wants to Escape the Rat Race These are the top five books that have [...]
How to Ferment Anything: A Beginner’s Guide to DIY Fermented Foods
Ferment Anything: How To Master The Ferment Here's Our Ultimate Guide To Understanding The Process Of Fermenting Foods Off Grid Fermentation is an ancient and natural process of preserving and transforming food [...]
3 Steps to Find and Choose the Best Location and Land for Living Off-Grid
3 Steps to Find and Choose the Best Location and Land for Living Off-Grid Here's Our 3 Step Process to Find and Choose the Best Location and Land for Living Off-Grid Living [...]
Off Grid Toilet A Comprehensive Guide
The Ultimate Guide to Off Grid Toilets Here's Our Ultimate Guide To Understanding and Selecting An Off Grid Toilet Without The Mess An off grid toilet does not rely on any public [...]
How I Installed a Tankless Water Heater for My Off Grid Cabin
How I Installed a Tankless Water Heater for My Off Grid Cabin Here's A Step-by-Step Guide To Selecting & Installing An On Demand Tankless Propane Hot Water Heater For Unlimited Hot Water Off [...]
What is the frost depth in your area?? You mite of used sono-tubes with rebar. Did you check cross angle of the box frame?? Suggest you use foil-buble-wrap over the 3/4 OSB sub flooring, the pink insulation attracts ants and other critters. If the flooring will be exposed to the weather for a wile, use driveway sealer to roll on top of the OSB, so it don’t swell up from rain. Use strapping to anchor the walls to the outer box sill, and brackets on the top plate of the walls to the roof rafters. Good Luck.
Hey there Mike! Thanks for taking the time to comment and share your expertise.
So, the reason we went with our above ground footing design, and not digging 4-6 ft holes with sono-tubes filled with concrete, is…
1. Time: We had only a 2 week period to build the cabin from start to finish and went with the fastest method that was still safe, effective and proven. Digging holes, mixing concrete and waiting for it to set would take days we did not have. We had all the building material dropped off the same day the build site was stripped by excavator and the 14 day clock to get the entire cabin framed, closed in and weather proof was started.
2. Location: We had the excavator for one day only in order to clear the land then it was gone (partly because of the load restrictions on the roads here in winter, partly because it was needed elsewhere, partly for cost reasons). The rocks underground where we are located are massive granite boulders (and without that excavator, it would not be possible to move them by hand along or by using post-hole diggers. An 8 cubic foot boulder (2ft x 2ft x 2ft) weighs 1200lbs. A boulder 27 cubic foot weighs 4320lbs! Unfortunately that’s exactly what we have right here.
3. Cost: We were able to save the cost of the tubes, footings, heavy equipment, and concrete putting those expenses into other parts of the build.
4. Ease: Honestly, it took a morning to get everything squared away and level and we were building. My father used to build houses in Pangnirtung Nunavut and this is how they did it then. Those homes are still there 50 year later.
5. Maintenance: I ensure the cabin is level every few months all the way around AND plumb. If for any reason it isn’t (that hasn’t happened yet) then it’s very easy to slip a car jack under that position and fix it (sand, pressure treated wood, cement block…etc)
The pink foam is sandwiched between two layers of plywood and end capped all the way around.
I think you’ll see the use of the top plate brackets in the following posts on rafters. We also used hurricane ties up top even though that’s total over kill where we are.
The next cabin we build there will be far less time constraints, now that I’m retired, and I would consider using sono-tubes and concrete to compare the process.
Thanks again for chiming in Mike!!
Steve
Thanks for posting. I am not judging you, just making comparisons to what I have researched thus far for my future build. I too was wondering why you didn’t use tubes with rebar. It looks like you have plenty of water near by to mix your pour. I am curious though…what is anchoring the cabin to the ground?
Andrew,
Hey, I actually just replied to Mike’s comment re the same sort of thing here.
I hope that explains exactly why we built our foundation the way we did and if you have any more questions at all please fire away.
Thanks for asking your questions Andrew and we’re thrilled you are doing research BEFORE moving ahead. I’ve gotten too many emails and comments from people saying they started… and “Now what?” Good on you!
Cheers!
Steve
The pink 1 inch foam board is sandwiched between 3/4 inch osb subfloor and then end caped all the way around, you wrote. I still am not clear on this. Are the walls sitting on this sandwiched floors? Or, did you put down the first 3/4 down, build the walls on top of that and then put the pink foam board and next 3/4 osb later inside the wall bottom plates? Please help.
The walls are built on top of the bottom 3/4 inch subfloor.
Then the 1″ thick pink rigid foam is laid down.
Next is a top layer of OSB.
Finally the 6 mil poly vapour barrier is put down before the laminate flooring.
I am planning on building an off grid cabin rhat will be 16 by 24. In manitoba. Harsh winters. Can I use this method of foundation for such a cabin
Hey there Levi!
Great to hear you’re building an off grid cabin as well.
Yes you can definitely use this method in harsh winter environments. In fact, our cabin is located less than 1Km from the Atlantic Ocean coastline and we get some bitter cold winds hitting us quite frequently. Provided you have good insulation and heat source, we find the wood-foam-wood thermal break works very well.
We also laid down a hardwood floor (from Costco) that probably doesn’t contribute to the insulation factor much but helps retain the heat once the cabin is at a good temperature.
The “ONLY” issue we’ve experienced (our fault) was when we left a memory foam mattress directly on the floor while we were gone (and the heat off). When we came back and heated up the cabin, we forgot to lift the mattress off the floor and the temperature change created humidity between the mattress and the floor. Nothing major but a point to remember. Now we’re installing a Murphy bed to prevent such an issue in the future and to save space.
I lived in Portage La Prairie 2004 when I first began my military flying career and again from 2009-2010 while attending helicopter flight training. I can definitely vouch for those frigid winters on the prairies!
Best of luck with the cabin and do keep us in the loop as you progress!
Cheers!
Steve
Hi there, we build our 16×24 cabin the same way, except for the foam layer, we just put osb floor like you. We put a floating fool and a thin foam layer after, and we dont have any issue. I will keep reading, mine is in north coast of Quebec. we close the kit in 3 days
I’m doing a 10×15 got some good info here thanks guys
What kind brand footings did you use? I am finding it hard to fins any footings that will take a 6×6. Thanks!
Hey they CJ, we used 4-inch x 4-inch Deck-Block made by Shaw Brick that we picked up at HomeDepot for $6.98 a piece. they do make a 6-inch x 6-inch Deck Block for $11.80 a piece. Here’s the link for details on that block… https://www.homedepot.ca/en/home/p.6-inch-x-6-inch-deck-block.1000127420.html
i need to know if i need to dig footer trenches if i m planing on a second floor everything ive seen so far says yes i think just concrete post would be easier for me cause i have no help. but i think i need trenches what do u think please need to know asap
Hey there Malissa! Great question :)
The choice of using a footer trench depends primarily on the ground type, how level it is (0…10… 20… 30 degree slope), availability and cost of related materials, and whether you intend to hire a professional building service contractor or to do it the work yourself.
If you hire a professional building service contractor, your choice of foundation options are fairly wide.
If you do everything yourself (like me), here are some typical basic options for constructing your small cabin foundation:
-Prefabricated concrete blocks (precast piers)
-Poured Concrete
-Stone
-Pressure Treated Timber
-Posts (locked in concrete or sono tubes)
-Concrete pads with cinder-block on sand/crusher (this is our design)
You’ll find out MORE about our specific foundation type here..
https://theoffgridcabin.com/hidden-secrets-for-how-to-build-the-perfect-level-foundation/
Also… here’s some small cabin guidelines I have shared with people in the past… (yes this does include 2-story cabins)
-If the ground is rocky OR there are a lot of tree roots underground, digging holes (for posts) may be a problem.
-If the ground has a small slope, you may be able to compensate with different-sized, or additional blocks, or raise the ground level on one side by laying gravel.
-If the ground has a fairly steep slope, you will need to use posts or raise a wall from concrete blocks on low-level side.
-It is not recommended to place concrete blocks directly on the ground, unless it is bare solid rock. Blocks should be placed on a flat rock/slab and/or gravel, and be well leveled. (this is what we did as we are on very compacted grey clay)
-Make sure any gravel is well compressed. Otherwise it will settle later and skew your cabin structure.
-One of the advantages of using concrete blocks is that over time, some blocks may settle more than others. This can be fixed by slightly lifting one side of the cabin with a car jack and shimming the blocks with flat stone, ceramic tile, etc.
-If using posts, they normally should be dug into the ground deep enough to firmly hold their load and below the freezing level. The freezing level depends on your geographical zone. Generally, you should dig the post at least 4 ft deep.
-If pillars or posts are not dug deep enough (i.e., above the frost line), this may cause warping or movement within the structure over time as moisture in the ground freezes and thaws. Cabin structure warping can lead to cracked windows, skewed doors, etc.
-If a post cannot be dug into the ground, another option is to place it into a concrete footing or a concrete (deck) block. However – very important – this can only be done on some (1 or 2) support points. Posts that are not secured deeply will not withstand horizontal forces. Other supports points (posts/blocks) that can withstand these forces must be firmly mounted.
-When placing posts into the ground, it is recommended to use concrete footing, at least in the top half. Sono tubes are supposed to be even better options, but they require more concrete, are more labor-intensive and cost more money as a result.
-Poured concrete is an applicable option only on a well-leveled ground. However, it is also a more expensive and more labor-intensive option.
-For posts you can use prefabricated pressure-treated 4″x4″ or 6″x6″ posts, or wooden posts formed using tree trunks. (You can paint them with oil paint first for better protection).
Sometimes the best option is to place the entire structure on a set of two double support beams (sometimes called girders). This is especially useful on unlevel ground, when used in conjunction with posts. Use two (or more) double-sets of 2″x10″ or 2″x12″ beams. (Keep in mind that beams add height to the cabin floor – your small cabin will look and feel “raised”).
Hope this helps you a bit in your planning. Feel free to ask any more questions along the way!
Cheers!
Steve
oh also forgot to say the ground is slightly uneven so thats why i felt like i needed to build footers plus second floor
Gents, great info for an amateur building a small cabin in the Maine Woods! Starting at the beginning of this series of notes, I was wondering how the 2×6 floor joists are secured to the 3 quad beams that form the base of the foundation…is it by weight/gravity, or are there straps that are used to keep the joist frame securely in place over the 3 quad beams?
Hey Mike, just wanted to get back with you regarding the floor joist set-up in case you didn’t catch in future posts. The entire system is a floating design. Because we didn’t go with a traditional solid foundation (concrete pier) or a concrete slab/crawlspace/basement the footings will shift “minimally” with changes in seasonal temps. With the joists “floating” on the beams this allows us to shim the individual sections that “may” require it as the building settles over time. I’m going to write up a post showing how I check for lever each spring/fall and how I level each pad if required. It’s incredibly simple, quick and effective.
Hate to repeat a question that might be answered later but here goes. I understand the 3 quad 2×8 beams are sitting on the piers without any attachments and I understand why. What I am not clear on are the floor joists. Are you saying the joists are not attached to the beams in any way? That is the way I read your reply to a previous question. The beams are free floating and the entire floor joist assembly is also free floating? Please help.
Hey Todd you are 100% correct in that the floor joists are fully floating on top of the three main support beams. This not only prevents the cabin from buckling in the event of the pads shifting with frost heave but makes aligning the tongue and groove subfloor sheets with the center of the joist extremely easy. You can see in the photos in this post that the sheets line up perfectly with the floor joist.
Hi there. I find this info very useful and thank you for sharing. I am curious to know what are these pads that your setting your blocks on top of called? Are they standard pavers or something special?
These are the specific Patio Slab Paver that we used.
Where’s the rest of the cabin build at?
Hey David. Simply click the top of your browser where it says BLOG. I’ve made a dedicated drop down menu that allows you to select “Building The Cabin
” and you can see every phase of the cabin build we’ve completed so far :)Cheers!
Hello Steve, can you please confirm a few things regarding the floor. In some photos it seems the floor overhangs the main beams at front and rear of cabin but in others they seem flush to the edge of the floor. If the floor does over hang the beams, by how much. If you didn’t do this than I assume the cinder blocks at front and rear will be in the way when skirting the cabin and I will have to work around them ? I do notice the cinder blocks are inset on left and right sides which means no going around them when installing the skirt. In short, the easiest way to put this is are the main beams 16 feet apart, outer edge to outer edge ?
Hey Paul,
The floor joists are flush on both sides and the rear. The only side that isn’t flush (yet) is the front. In the next post you’ll see that’s because we’re building an 8′ x 20′ covered front deck and we’ll be using 3 6″x6″ chamfered pressure treated posts to support the front of the cabin deck instead of the footing style we used for the main cabin section. We won’t be skirting around the cabin for a few reasons.
1. To allow air to better circulate underneath the cabin. This helps keep the ground dry as we’re on a slight slope and rain “may” run underneath.
2. It allows us to easily shim the cabin footings in the future if we find any one (or more) footings have lowered due to settling. And access the propane/water lines.
3. We also want to store our kayaks/paddle boats and firewood under the front deck and not have to try and squeeze them (or us) through a 3 foot tall door way.
If your build calls for skirting around the bottom then you could simply move the footings in one floor joist, shorten the 3 main support beams a little, and that would work.
Cheers!
Hi Steve.
I have been day dreaming for years about building my off grid cabin myself. i found your site and it’s been a great resource (for the day dreaming still) .
Thanks for all the good info. i got couple of questions regarding the foundation
1. How did you joind the 4 2×8″ beams? Nails, Screws only or should I use glue as well?
2. I did not see the beams bolted to the concrete, is it onr isn’t it needed? I am planing on building a 20’x20′ cabin
TIA
Hey Karben!
For fastening the beams together we did use a subfloor adhesive foam called Dap SmartBond Subfloor Construction Adhesive Here’s a link to the DAP page which shows the exact product so you know which particular adhesive I’m referring to. We also used our DeWalt cordless nail gun to fasten the beams together, layer by layer. (I will edit the blog post to include this info)
Each of the three main support beams are free floating on their respective cement block without anchoring them down. This allows for the footing to shift (with the change in seasonal temps) “if” that happens at all. If the beam was anchored to the footing, and one footing was to shift, the cabin could experience a shearing force and may cause a weak point in the footing and/or structure. By allowing the beam to ride on-top of the cement footing the entire building can slide on the foundation to prevent unwanted forced from occurring.
Now to be 100% clear when I say “shift” or “slide” I’m talking millimeters here. Please do not misread that and think your home will be sliding around like skates on ice! Our cabin foundation for example, which was built in April 2015 (it’s currently Oct 2018), has not moved what so ever over the past three years. That’s going from +30 in the summer to -30 in the winter and being built on a gravel/soil foundation.
Hope that helps answer those questions Karben.
Cheers!!
Steve
Thanks a lot Steve, very helpfull indeed
So glad to hear you found it helpful Karben!
Steve, I am curious, did you purchase pre-made pads or make forms and pour your 24×24″ concrete pads beneath the cinder blocks? It appears to be a pre-made piece, but thought I would ask. Soon I will be starting my own cabin adventure in the southeastern US and want all the info I can get!
Hey there Patrick!
We actually picked up the pads from Home Depot. They call them a Patio Slab Paver and are less than $10 a piece. Here’s the link for them at Home Depot so you can see exactly what I’m talking about.
Definitely share your cabin build process with us when you get started Patrick!
Cheers!!
Steve
Wow! Your style of sharing your build with us is capturing as in the first page of a book determining whether you go to page two. Your “book” makes one want to go at a slow absorbing pace..a question that I would be interested in the process of the sand and crusher dust and exactly how you leveled all the points of the foundation….thanks!
Hey there Wayne!
Well, once we dug down to “undisturbed soil” we simply tamped down the ground lightly with the end of a 4×4 post and then dumped out approximately two bags of crushed dust (sand) for each pad. Using a 16 inch long 2×4 as a screed we leveled the sand and then double check it with our 4 foot level. We also lightly tamped the sand down but not too much.
The great thing about this sand is that it will not spread out flat like regular sand. It stays pretty much where you put it based on the fact that each grain of sand is course and “locks” together unlike regular sand that has formed from rock naturally wearing away. This sand is crushed. Hence the name “crusher dust”.
Finally, we topped the level sand with our concrete pad and made certain all the pads were the same height. If any pad was too high we simply tamped it down further. If it was too low, we just lifted the pad and added a few more handfuls of sand.
Hope that helps Wayne and thank you for the kind comments.
Cheers!!
Steve
Is this style of foundation safe for areas where earthquakes are a serious risk?I really like this style of foundation, but since it floats on the concrete pads could the whole building potentially fall off in a large quake? Thanks!
Hey there Ben. I had this question come up a while back and someone who knows more than I do about earthquakes (we don’t have any here in Nova Scotia) sent me this link to help address a possible solution. While no “off-grid cabin” can be 100% quake-proof, I’d like to think you could improve upon what we’ve used in our construction by including additional structural supports like these here.
Yes, I love your build I am in the process of building a 10×16 chicken coop and was looking for ideas for the foundation because where I am putting it there are a lot of tree roots and didn’t want to take the time and money to dig down 4ft and put in piers. I didn’t understand your build is a 20 x24 or 24x 20 and you are using 2x6x16 for your floor joists. Am I missing something? How are you spanning 20′ with a 16 foot floor joist? I have to be missing something. just wondering. thank You for your ideas your site has been very helpful.
Hey David,
When facing the cabin from the front the inside floor space is 20ft wide and 16ft deep. The covered deck is also 20ft wide and it’s 6ft deep. So all in all our cabin has a total floor space of 20ft wide and 24ft deep.
We used 16ft long 2×8’s quadruped up (nailed and glued) to make up the three main beams that support the floor joist. The pads are spaced 8ft apart and so we aren’t spanning the entire 20ft unsupported. These main beams run left to right and the floor joist built on top of these beams run front to back.
To fashion the beams we overlapped the 2×8’s making sure to use construction adhesive and nails the full length of the beam. When we had two layers built we simply overlapped another row of 2×8’s and repeated the process until we had four layers.
Hope that and the photos in the post make it clear exactly how we built it.
Steve
I’m building a 12×16 shed to be used as a woodshop/workshop. I’m curious about the freefloating foundation. Do you think it would work for a building of this size?
A lot of sheds in this area are even placed on gravel pads, but I wanted to go a step further than that with mine and get pillars in the ground below the frost line.
Hey Drew,
I believe it will work for a project of your size. One of the benefits of this floating foundation design is the ability to level and plum after the build (even years) should it need it. It’s as easy as jacking up a corner of the pad with a car jack and placing a pressure treated shim on top of the cinder block. Our cabin is now just out of its fourth winter and so far this foundation design has worked out flawless for us. While it’s traditionally thought that you need to put concrete piers (sono tubes) below the frost line in order to provide a solid and stable foundation, that just isn’t the case.
In addition… our shed is an 11ft x 11ft Lifetime shed (https://www.lifetime.com/lifetime-6433-11-foot-x-11-foot-outdoor-storage-shed) which is placed on a PT plywood and 2×4 base that we built and then set on top of a gravel pad.
Cheers!
Steve
Enjoying your blog. I hadn’t thought before of sandwiching rigid foam in the floor like you did, I think I’ll use that in our next project- a 16×20 off grid 3-sided log cabin. I just wanted to confirm- I didn’t see you mention putting any fiberglass batt in the floor joists. Is just the foam sufficient in winter? Seems like it would be much harder for critters to get in and nest in the floor your way, as long as the floor isn’t too cold in winter.
Hey Erika!
That’s right, we have no insulation, plastic vapor barrier, or netting (chicken wire or barrier fence) for animals to nest/chew on under the cabin. In the four years since we’ve built the cabin we’ve never had a single critter issue with this sandwiched floor design. With the 1″ rigid foam acting as a thermal break there is no problem keeping a very comfy temperature differential between the inside and outside even on the coldest of days here in Nova Scotia!
Let us know how your next build goes :)
Steve
Hi,
Would you need to dig to undisturbed soil if you already had a compacted and relatively level surface? Could you place the patio slabs directly on top of that surface without any need of the crusher sand as a buffer?
Thanks,
Rob
Hi there Rob!
You certainly can place the slab directly on top of SOLID undisturbed ground. In fact, for some builds we’ve placed the cement pad directly on top of rock with just an inch of sand underneath. However, if the ground is the least bit slanted (meaning not perfectly level) I would still recommend using crusher dust regardless of the type of undisturbed soil. The reason is that moisture can still form underneath the cement slab, freeze, and cause the building to shift. Just one more reason to use the sand.
Hi Steve, this is a very informative site. Thank you so much! I am a Newfoundlander but plan to move to one of the other Atlantic Provinces soon after retirement only because I cannot do much of hobby farming here in Newfoundland. I plan to build a cabin as well.
I have one question out of curiosity. Are cinder blocks strong enough to bear the weight of this cabin?
Thank you.
We’ve never had any issue with using just the standard cinder block from any major home building supply store. One tip is to fill the cinder block that my fill with snow//water/ice with expanding foam or cement. This prevents the block from undergoing expansion-contraction cycles if there ever was an accumulation of ice inside in the winter. We filled only the cinder blocks that were supporting the three 6″x6″ deck posts as the rest are all under the cabin itself and are not exposed to the elements.
Hello Steve, I am going to be building a cabin this summer in Alaska with a very similar foundation. I am wondering if there would be an issue with building the big carrying beams out of the 2x8s and then using I joist hangers and putting I joists between the carrying beams, rather than on top? Do you think this would not be as sturdy of a floor foundation? I want to use I joists vs just normal lumber, so trying to decide between hangers or placing them on top of the beams. Thank you
Good question Sam and YES… you can build your floor joist as you described. We went with our design because of the particular length of lumber we were using for our floor joists, the ability to nail the joist into the ledger as opposed to toe nailing the joists into the beam and/or having to use joist hangers, and lastly it requires less cutting of materials.
Congrats on your build Sam!!
Hi there
Great Blog! Just curious about one thing, it seems you went with nailing the joists into the end board? Why that route instead of joists hanger brackets? Would you not get more strength with the brackets?
Hello Lee,
You certainly can add joist hangars. Nothing wrong with getting the warm and fuzzy feeling that you’ve over built something that will last generations. However, to quote the home builders manual… “Codes typically call for attaching joists with joist hangers at the ledger. They are sometimes not required at the header if they rest on a nearby drop beam and you drive nails through the face of the header into the joists. But even in that situation, some inspectors will want to see joist hangers.”
We did use joist hangers on the ledger where we attach all of the deck joists. They they are required but not anywhere else in the build. As a side note: we did also include hurricane ties in the rafters. Even though they aren’t required.
Hope that answers your question Lee.
Cheers and thanks for dropping in.
Steve
Hi Steve, thanks so much for all the info here on your blog!
My husband and I are building a 24×20 (we think) home this summer. We don’t have access to an excavator that would be able to completely level our build site. Were building on the tongue of a slight slope, and the cabin will need higher footings on one or two sides. What would the “sandwich” look like to build up height on a pillar?
Hey Lisa,
Received your e-mail this morning. We have been back and forth with the cancer treatment center again and its been a trying time with the whole covid issue as well. Pardon for the tardy reply.
For an uneven slope the issue obviously is leveling the floor joists. Three options you may consider are Concrete Piers and Beams, Post and Beam (similar to what we built), and Screw Piles. Our three front deck support posts are actually lower to than the other 9 cabin pillars due to uneven ground. We simply leveled the area directly below each post and cut the length to suit the required height difference.
Hope that gives you some options. Again sorry for the tardy reply. Been a crazy year!
Steve
Hi Steve, I’ve completed the foundation, beams, joists and sub floor on my project, a 750 sq ft cabin. Walls are going up next week. My question is on the sandwich floor. We live in Wisconsin and will be having just a few cold nights in the future. I am assuming that I should do the sandwich floor after the walls are up as to not have a layer of foam between the bottom of the wall and the floor/joists. How is the second layer of OSB attached to the foam and can the vapor barrier be installed on top the foam board and then the OSB on top of that? Thanks a lot
Hey there David!
We made sure to have our walls up BEFORE building our sandwich floor. This makes the job easier in the end, prevents exposed foam-board and allowed us to completly close out the exterior of the cabin faster. As well, it allowed us so finish framing the interior walls, install all the electrical and plumbing and then put in the sandwich flooring.
There are a few different options when building your flooring sandwich and it all comes down to climate, finished flooring type, and honestly… preference. We used wood screws through the top layer of OSB, through the foam board and into the bottom layer of OSB. We then placed our vapor barrier on to the top later of OSB so that our laminate flooring could move more easily/quietly in the case of expansion/contraction. Since the laminate flooring has a foam backer glued to the backside of the flooring can shift much more smoothly/easily on the vapor barrier plastic than if it was placed directly on the OSB.
Hope that helps explain why we did what we did David.
Steve
if using this method in areas wher high wind, tropical storms ot tornadoes id recommend using hurrican ancores like you would with a mobile home . any structure like this probably would not take a direct hit but as storm goes through it would help would not add too much to cost
Again Steve – thank to your blog! https://www.facebook.com/gracebeneaththepines1/posts/1160936720926619 T&G OSB going on today!
You are a saint for this. I’ve been dreaming about how to put a 30′ x 30′ addition onto my 432 sq. ft. cabin. Sorry to hear of the cancer problem. Hope you get well quickly.
Audra
i reread this page everything look right for what you built. but did yo drench and termiticide around the foundation blocks
We have two channels that run front the back of the cabin to the front to prevent water from pooling anywhere under the cabin. However, our cabin is built on a slight slope so water naturally runs from the back to the front anyway. We spray the foundation posts and blocks with insecticide every spring and summer. We use Ortho Home Defense MAX Perimeter that uses a very handy battery operated sprayer.
Hi Steve, great blog thks… it seems that you used untreated lumber for the foundation, any problems with weather damage especially in the winter and carpenter ants in the summer?
Hey Ric!
We’ve never had a single issue with the foundation (weather or insect related) in 5 years since we’ve built the cabin. In fact, we haven’t needed to do anything but enjoy it :)
One important fact is that we have ZERO untreated wood in direct contact with the cement pads/cinder blocks. I’ve gone into great detail of why in several posts but basically you do not want any wood that is not pressure treated in contact with cement/concrete.
We’ve made certain to use slabs of pressure treated wood between any point where regular lumber and concrete/cement will contact. This prevents damage/weathering/rod.
We also spray the foundation posts and blocks with insecticide every spring and again mid-summer. We use Ortho Home Defense MAX Perimeter that uses a very handy battery operated sprayer.
Hope that helps Ric.
Cheers!
Steve
Just starting to think about this and not much experience. If I had a 12 foot wide instead of your size, would it be appropriate to have just 2 beams and attach the joists to the beams instead of
having a beam layer and a floor joist layer or is there some benefit to the two layers. Even in your
design to have the beams and attach the joists between the beams using 2 shorter pieces instead of the one long one? I am asking because I have some constraints on height of the foundation and
need to keep it lower to the ground to interact with other structures. Thanks
Yes, you can absolutely do that Karen. Just be sure to understand the maximum distance you can span between beams given the dimensions of your lumber and weight expectation. There are several online calculators to calculate those numbers in accordance with the regulations in your area.
We built our floating foundation to accommodate any “slight” shifting that may occur as a result of frost heave acting on one or more of the pads/posts.
However, we haven’t experienced any movement over the course of 5 winters now.
We used full length 16′ 2x6s placed 16″ O.C. for the cabin floor joist and added the 8′ pressure treated lumber to the floor joist to build our front deck.
Hope that helps Karen :)
Steve
Hi there. I find this info very useful and thank you for sharing. I am curious about that cement pads are these standard pavers or are they a special product?
Hey Kenny, these are just regular 24″ x 24″ patio slab pavers from Home Depot.
Hi, thank you for such a brilliant post. I have been reading some blogs that gives me more knowledge about this topic how to build the best foundation for an off grid abin. I must say this is one of the best among them.
